Name: Juli FL Live cell movie analyzer
Brand: Nanoentek
Availability: InStock

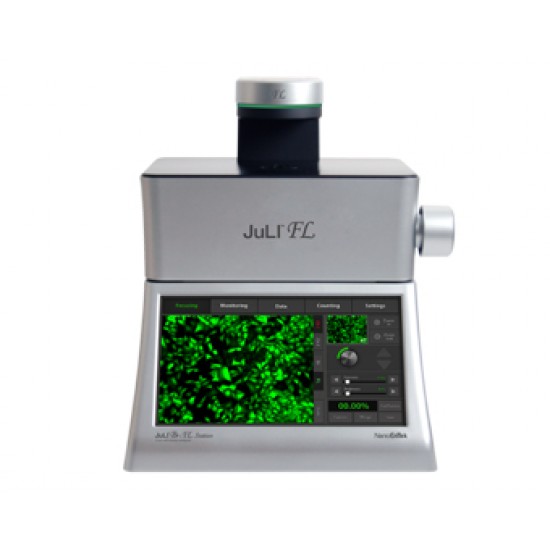

Juli FL Live cell movie analyzer

Description
Reviews

Fluorescence live cell movie analyzer
With the states-of-the art optics, JuLI™ FL enables users to perform the image capturing and the time-lapse movie making. It also can support cell counting and measuring the level of fluorescence expression.

key features & benefits

· Time-lapse image capturing and movie making

· Cell counting and viability

· GFP or RFP expression level checking

· Dual system for comparative data (Optional)

· Protected by patents KR2012-0099447 ; other rights granted and pending

Versatility
Time-lapse image capturing & making movie
Cell counting and viability
GFP or RFP expression level checking
Dual system available for comparative cell analysis (Optional)

Accuracy
Automated confluence detection & growth curve
Semi-Auto focusing with low variation

Ease of use
Intuitive graphic user interface & LCD touch screen
Compact size optimized for an cell culture incubator
Simple steps for the system setups and the operations
No calibration & maintenance required

Applications
Cell growth monitoring / Cell migration assay / Cell confluence detection / Cell viability & counting y / Cell-based assay optimization

Power	AC 100 ~ 240 V, 50 ~60 Hz
Size	Scope: 300 (W) x 190 (L) x 188 (H) mm Station: 282 (W) x 285 (L) x 160 (H) mm
Weight	Scope: 4.5 kg, Station: 3.2 kg
Objective lens	4X & digital zoom
Camera	CMOS (1.3 M pixels, 1280 x 960)
Display	10.1” LCD touch screen
Data storage	Hard drive (320 GB), USB drive (4 GB)
Data format	JPEG, TIFF, BMP, PNG (image) AVI (movie), CSV (raw data)
Operation temperature	5 ~ 40 ℃
Maximum relative humidity	20 ~ 95 ℃
Counting time	< 10 sec/test
Cell measurement range	1 x 10 4 ~ 1 x 10 7 cell/µL
Optimal measurement range	1 x 10 5 ~ 4 x 10 6 cell/µL
Cell size range	5 ~ 60 µm
Loading sample volume	10 µL
