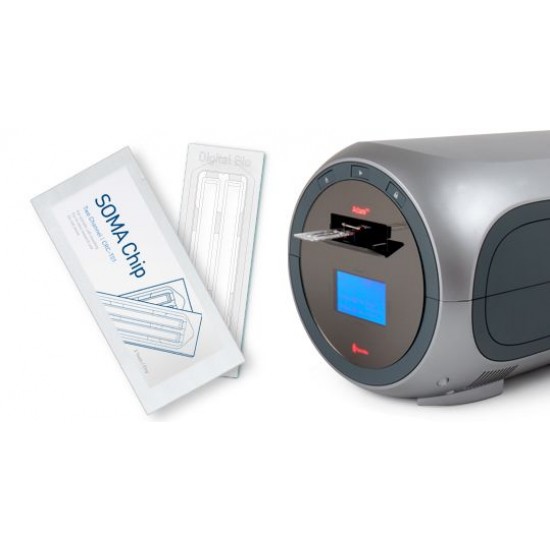

ADAM-SCC cell counter
- Automatic Somatic Cell Counter
- ADAM-SCC counts somatic cell to determine raw milk quality with unique image cytometer technology. ADAM-SCC designed for using in research field, milk manufacturing facility and even dairy farm with it
Key features & benefits
· Easy to use (Lading & counting)/ Small & compact design
· No need of calibration/ Low maintenance cost
· High accuracy with uniue image cytometer technique
· Protected by patents / KR608498, KR844350, US7,411,680, US12/522,377, EP04748430.8, CNZL20040020890.7 slide: KR572207, US7,842,157, US12/916,098, EP10006339.5 ; other rights granted and pending
As accurate as FACS counting
: Cell counting accuracy depends on the counting volume
8.5 ul counting is 8.5 times more accurate than 1 ul analysis.
ADAM analyzes 60 images which is equivalent to 8.5 ul counting volume.
: Cell counting accuracy depends on the counting volume
8.5 ul counting is 8.5 times more accurate than 1 ul analysis.
ADAM analyzes 60 images which is equivalent to 8.5 ul counting volume.
These improvements specifically address variation attributable
to low sample reads ( some competitor models only perform one read ), low sampling volumes ( most models only read 1ul or less ), and inaccurate resolution of cells ( often found when cells clump together ). The results are amazing and it is common to have R2 values over 0.99 and CVs under 1%.
to low sample reads ( some competitor models only perform one read ), low sampling volumes ( most models only read 1ul or less ), and inaccurate resolution of cells ( often found when cells clump together ). The results are amazing and it is common to have R2 values over 0.99 and CVs under 1%.
|
Power |
Power |
|
AC 100 ~
240 V, 50 ~60 Hz |
AC 100 ~
240 V, 50 ~60 Hz |
|
Size |
Size |
|
220 (W) x
375 (L) x 250 (H) mm |
220 (W) x
375 (L) x 250 (H) mm |
|
Weight |
Weight |
|
9.0 kg |
9.0 kg |
|
Objective
lens |
Objective
lens |
|
4X |
4X |
|
Light
source |
Light
source |
|
Green LED |
Green LED |
|
Camera |
Camera |
|
B/W CCD |
B/W CCD |
